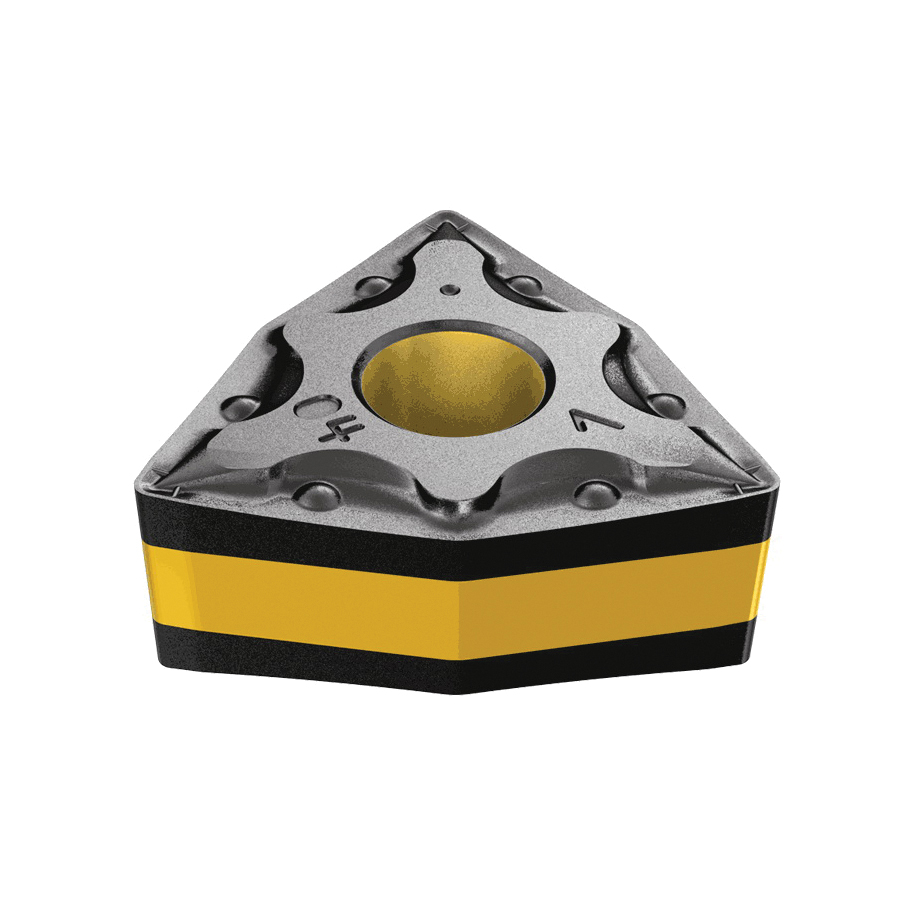

Iscar ISCAR 5508178
Iscar 5508178 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-WF IC8150, WNMG Insert, Material Grade: K, P, 432 Insert, Trigon Shape, 08 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Wnmg 432-wf Ic8150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, WF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: WNMG 432-WF IC8150, ISO Code: WNMG 080408-WF IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- IC8150 grade a hard substrate with a cobalt enriched layer, MTCVD TiCN and alpha Al2O3 CVD coating
- Excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
Specifications
ANSI CodeWNMG 432-WF IC8150
ChipbreakerWF
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-WF IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
