Iscar ISCAR 5508158

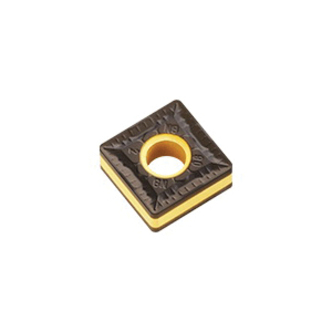

Iscar 5508158 ISOTURN 2-Sided Turning Insert, ANSI Code: SNMG 432-GN IC8150, SNMG Insert, Material Grade: K, P, 432 Insert, Squared Shape, 12 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Snmg 432-gn Ic8150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, SNMG Insert, 432 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: SNMG 432-GN IC8150, ISO Code: SNMG 120408-GN IC8150, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Secure cutting edge
- Chipbreaker on both sides, with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeSNMG 432-GN IC8150
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter5.1562 mm
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleSNMG
ISO CodeSNMG 120408-GN IC8150
Length12.7 mm
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeSquared
Thickness4.76 mm
Type2-Sided
Width12.7 mm
Additional Information
Country of OriginIL
