Iscar ISCAR 5508157

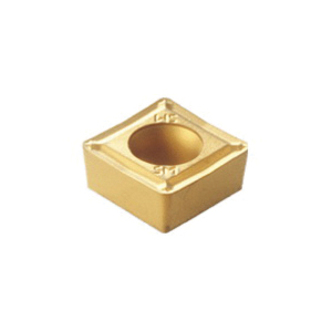

Iscar 5508157 ISOTURN 1-Sided Turning Insert, ANSI Code: SCMT 432 SM IC8150, SCMT Insert, Material Grade: K, P, 432 Insert, Squared Shape, 12 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Scmt 432-sm Ic8150
Factory Order

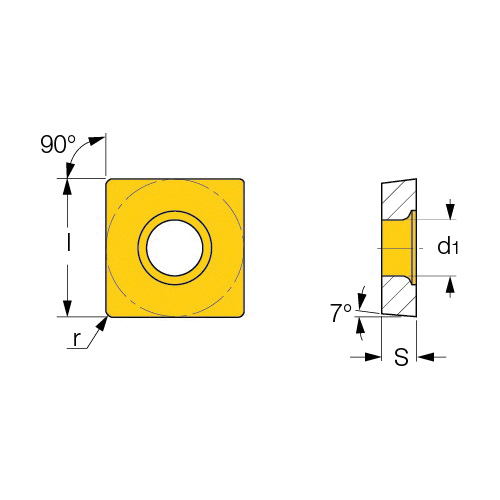

Iscar Turning Insert, 1-Sided, Series: ISOTURN, SCMT Insert, 432 Insert, Squared, 4 mm Maximum Depth of Cut, 4.76 mm Inscribed Circle, 4.76 mm Thickness, 4.76 mm Width, 12.7 mm Length, 12 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: SCMT 432 SM IC8150, ISO Code: SCMT 120408-SM IC8150, 90 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC8150 grade a hard substrate with a cobalt enriched layer, MTCVD TiCN and alpha Al2O3 CVD coating
- Excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeSCMT 432 SM IC8150
ChipbreakerSM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter5.5 mm
Included Angle90 deg
Inscribed Circle4.76 mm
Insert Size432
Insert StyleSCMT
ISO CodeSCMT 120408-SM IC8150
Length12.7 mm
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeSquared
Thickness4.76 mm
Type1-Sided
Width4.76 mm
Additional Information
Country of OriginIL
