Iscar ISCAR 5508143

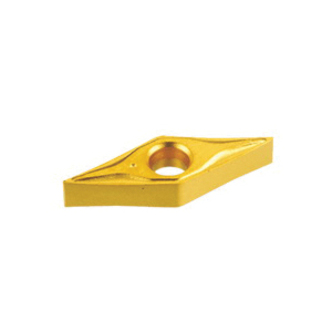

Iscar 5508143 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 2.5-0-NF IC8250, VNMG Insert, Material Grade: M, P, 2.5-0 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Vnmg 2.5-0-nf Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 2.5-0 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 7.15 mm Inscribed Circle, 3.97 mm Thickness, 12 Seat, Positive Rake, NF Chipbreaker, 0.2 mm Corner Radius, 0.11 in Hole Dia, Manufacturers Grade: IC8250, ANSI Code: VNMG 2.5-0-NF IC8250, ISO Code: VNMG 12T302-NF IC8250, 35 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides, with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVNMG 2.5-0-NF IC8250
ChipbreakerNF
Corner Radius0.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.11 in
Included Angle35 deg
Inscribed Circle7.15 mm
Insert Size2.5-0
Insert StyleVNMG
ISO CodeVNMG 12T302-NF IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
