Iscar ISCAR 5508140

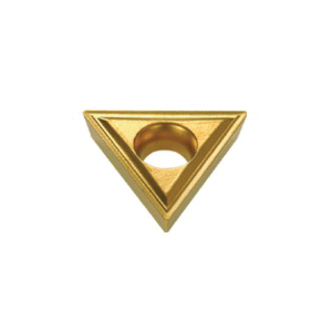

Iscar 5508140 ISOTURN 1-Sided Turning Insert, ANSI Code: TPMT 321 IC8250, TPMT Insert, Material Grade: M, P, 321 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Tpmt 321 Ic8250
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, TPMT Insert, 321 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, 0.4 mm Corner Radius, 4.3 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: TPMT 321 IC8250, ISO Code: TPMT 160304 IC8250, 60 deg Included Angle, 11 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive chipformer, low cutting forces
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationInternal Turning and Finishing
ANSI CodeTPMT 321 IC8250
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.3 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size321
Insert StyleTPMT
ISO CodeTPMT 160304 IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle11 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
