Iscar ISCAR 5508132

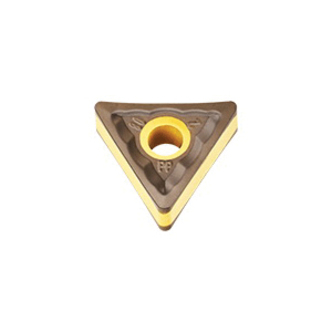

Iscar 5508132 ISOTURN 2-Sided Turning Insert, ANSI Code: TNMG 332-PP IC8250, TNMG Insert, Material Grade: M, P, 332 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Tnmg 332-pp Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, TNMG Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, PP Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: TNMG 332-PP IC8250, ISO Code: TNMG 160408-PP IC8250, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive rake angle and sharp, positive radial edge
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationMachining Applications
ANSI CodeTNMG 332-PP IC8250
ChipbreakerPP
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleTNMG
ISO CodeTNMG 160408-PP IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
