Iscar ISCAR 5508131

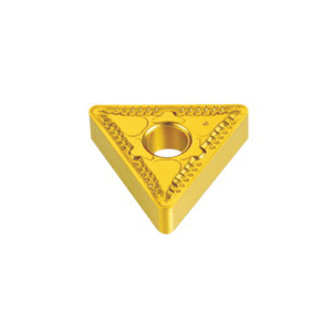

Iscar 5508131 ISOTURN 2-Sided Turning Insert, ANSI Code: TNMG 332-GN IC8250, TNMG Insert, Material Grade: M, P, 332 Insert, Triangular Shape, 16 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Tnmg 332-gn Ic8250
Factory Order

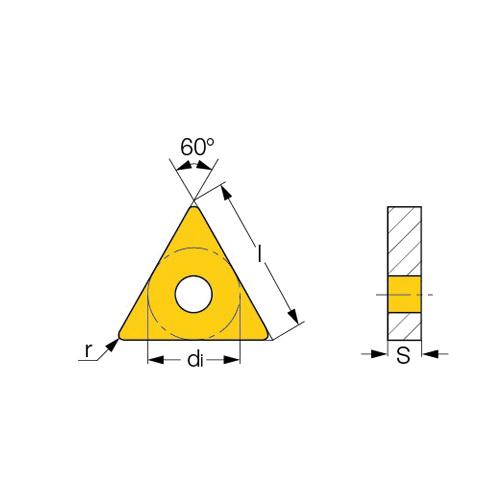

Iscar Turning Insert, 2-Sided, Series: ISOTURN, TNMG Insert, 332 Insert, Triangular, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC8250, ANSI Code: TNMG 332-GN IC8250, ISO Code: TNMG 160408-GN IC8250, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeTNMG 332-GN IC8250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.15 in
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleTNMG
ISO CodeTNMG 160408-GN IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
