Iscar ISCAR 5508126

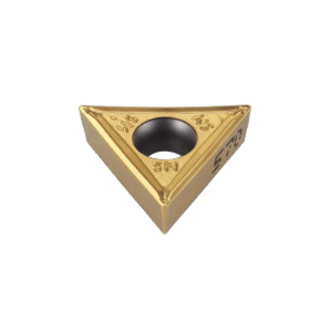

Iscar 5508126 ISOTURN Turning Insert, ANSI Code: TCMT 2-1-SM IC8250, TCMT Insert, Material Grade: M, P, 2-1 Insert, Triangular Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Tcmt 2-1-sm Ic8250
Factory Order

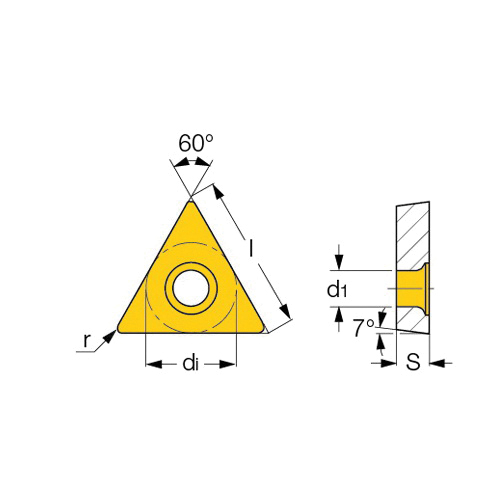

Iscar Turning Insert, Series: ISOTURN, TCMT Insert, 2-1 Insert, Triangular, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: TCMT 2-1-SM IC8250, ISO Code: TCMT 110204-SM IC8250, 60 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeTCMT 2-1-SM IC8250
ChipbreakerSM
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter2.8 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleTCMT
ISO CodeTCMT 110204-SM IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Additional Information
Country of OriginIL
