Iscar ISCAR 5508108

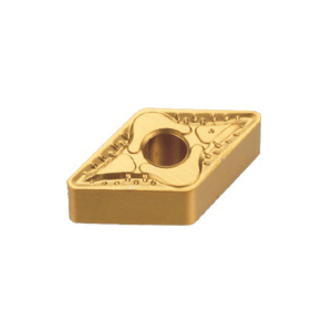

Iscar 5508108 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432 GN IC8250, DNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 15 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, GN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: DNMG 432 GN IC8250, ISO Code: DNMG 150408-GN IC8250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeDNMG 432 GN IC8250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-GN IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
