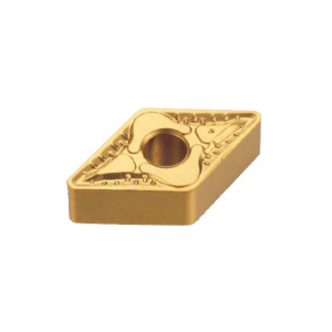

Iscar ISCAR 5508106

Iscar 5508106 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 332-GN IC8250, DNMG Insert, Material Grade: M, P, 332 Insert, Rhombic Shape, 11 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250

UNSPSC: 23242107
Manufacturer PN: 5508106
$15.54 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 332 Insert, Rhombic, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: DNMG 332-GN IC8250, ISO Code: DNMG 110408-GN IC8250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

  • Features

  • Secure cutting edge, for medium and semi-roughing on steel and cast iron

Specifications

ANSI CodeDNMG 332-GN IC8250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter3.81 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleDNMG
ISO CodeDNMG 110408-GN IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Relief Angle0 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
