Iscar ISCAR 5508097

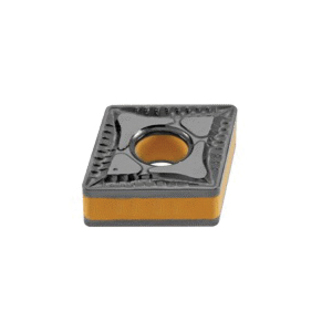

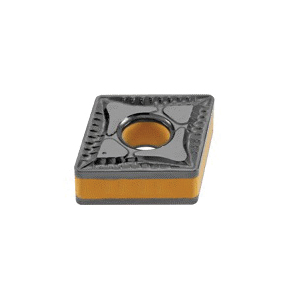

Iscar 5508097 2-Sided Turning Insert, ANSI Code: CNMG 642-GN IC8250, CNMG Insert, Material Grade: M, P, 642 Insert, Rhombic Shape, 19 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Cnmg 642-gn Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, CNMG Insert, 642 Insert, Rhombic, 8 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.313 in Hole Dia, Manufacturers Grade: IC8250, ANSI Code: CNMG 642-GN IC8250, ISO Code: CNMG 190608-GN IC8250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeCNMG 642-GN IC8250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.313 in
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size642
Insert StyleCNMG
ISO CodeCNMG 190608-GN IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut8 mm
Relief Angle0 deg
Seat Size19
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
