Iscar ISCAR 5508091

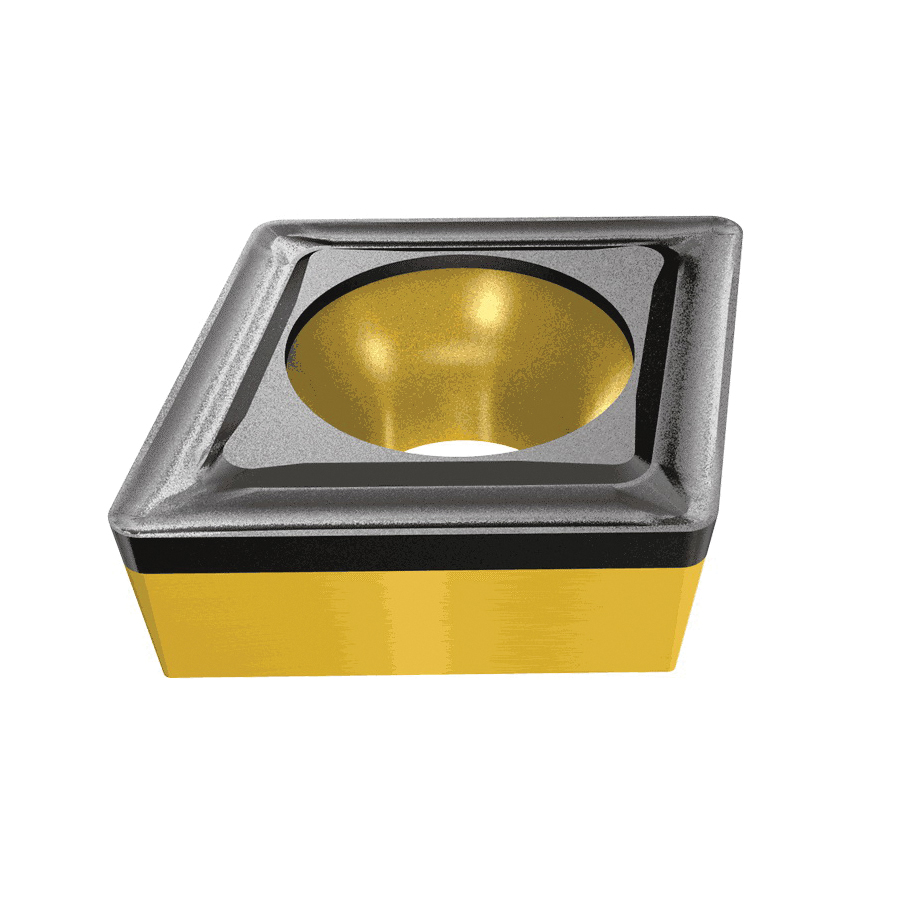

Iscar 5508091 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 3-2-14 IC8250, CCMT Insert, Material Grade: M, P, 3-2 Insert, Rhombic Shape, 45 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Ccmt 3-2-14 Ic8250
Factory Order

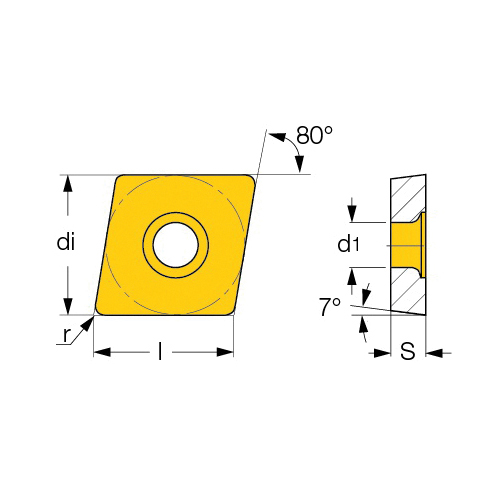

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 3-2 Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 45 Seat, Positive Rake, 14 Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: CCMT 3-2-14 IC8250, ISO Code: CNMX 452-HTW IC8250, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 3-2-14 IC8250
Chipbreaker14
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-2
Insert StyleCCMT
ISO CodeCNMX 452-HTW IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size45
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
