Iscar ISCAR 5508073

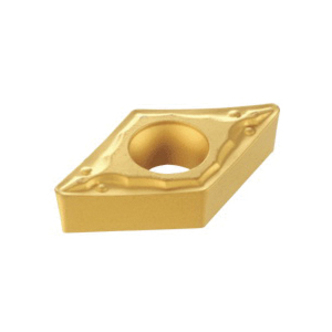

Iscar 5508073 ISOTURN 1-Sided Turning Insert, ANSI Code: DCMT 3-1-PF IC8250, DCMT Insert, Material Grade: M, P, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Dcmt 3-1-pf Ic8250
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCMT Insert, 3-1 Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: DCMT 3-1-PF IC8250, ISO Code: DCMT 11T304-PF IC8250, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 3-1-PF IC8250
ChipbreakerPF
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCMT
ISO CodeDCMT 11T304-PF IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
