Iscar ISCAR 5507997
Iscar 5507997 ISOTURN Turning Insert, ANSI Code: DNMX 442-M3P IC8250, DNMX Insert, Material Grade: M, P, 442 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Dnmx 442-m3p Ic8250
Factory Order

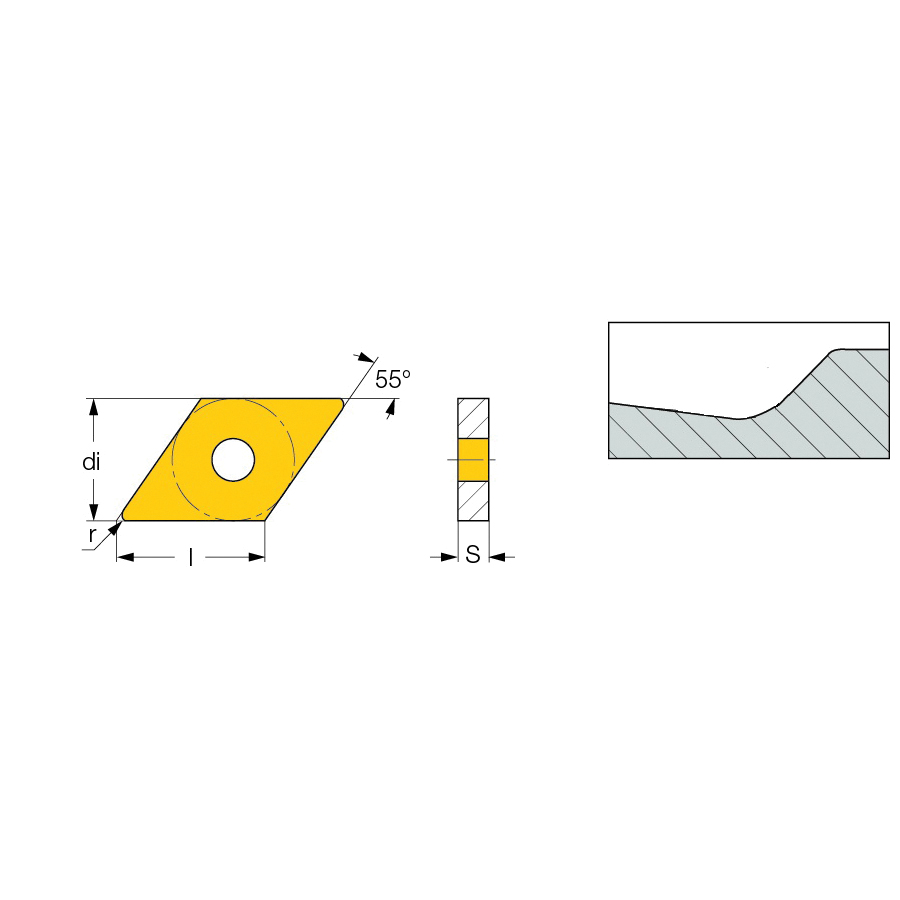

Iscar Turning Insert, Series: ISOTURN, DNMX Insert, 442 Insert, Rhombic, 7 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15 Seat, Positive Rake, M3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: DNMX 442-M3P IC8250, ISO Code: DNMX 150608-M3P IC8250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
- Used for medium machining applications on steel
- IC8250 grade recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ANSI CodeDNMX 442-M3P IC8250
ChipbreakerM3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size442
Insert StyleDNMX
ISO CodeDNMX 150608-M3P IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut7 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Additional Information
Country of OriginIL
