Iscar ISCAR 5507995

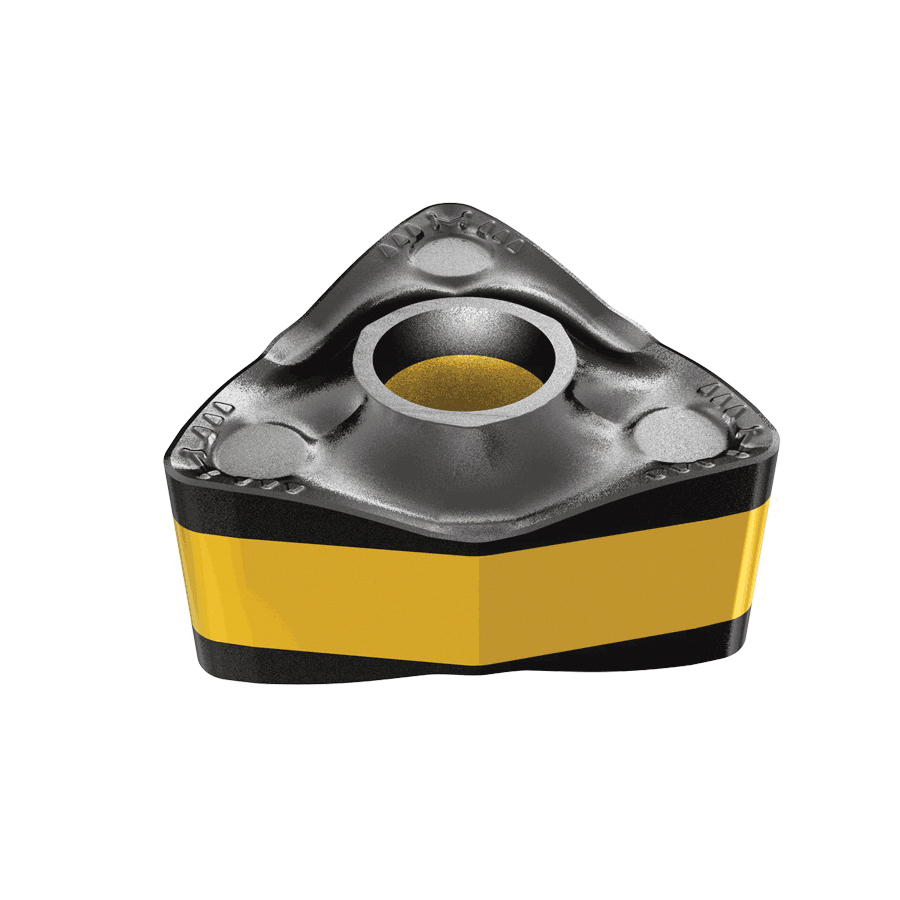

Iscar 5507995 HELITURN LD Turning Insert, ANSI Code: WNMX 452-M4PW IC8150, WNMX Insert, Material Grade: K, P, 452 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Wnmx 452-m4pw Ic8150
Factory Order

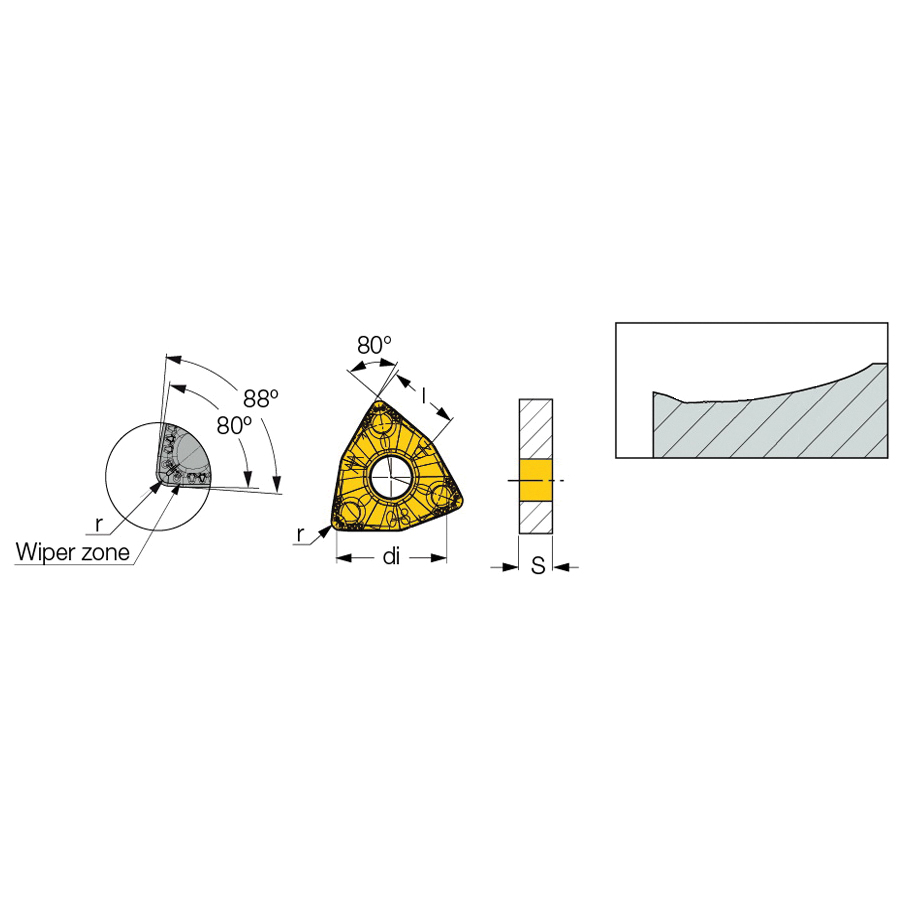

Iscar Turning Insert, Series: HELITURN LD, WNMX Insert, 452 Insert, Trigon, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.78 mm Thickness, 08 Seat, Positive Rake, HTW Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: WNMX 452-M4PW IC8150, ISO Code: WNMX 080708-M4PW IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
- A wiper corner design produces a high surface finish even at high feed rates
- IC8150 grade excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
Specifications
ApplicationHeavy Machining Applications
ANSI CodeWNMX 452-M4PW IC8150
ChipbreakerHTW
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size452
Insert StyleWNMX
ISO CodeWNMX 080708-M4PW IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut5 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesHELITURN LD
ShapeTrigon
Thickness6.78 mm
