Iscar ISCAR 5507988

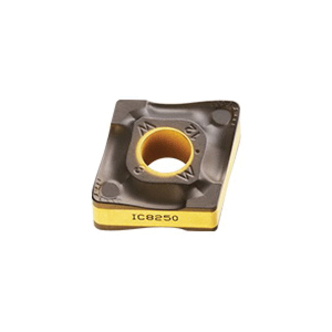

Iscar 5507988 HELITURN Turning Insert, ANSI Code: CNMX 553-HTW IC8150, CNMX Insert, Material Grade: K, P, 553 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150

UNSPSC: 23242107
Manufacturer PN: 5507988
$25.40 EA
Factory Order
Estimated to ship in 14 days
QTY:

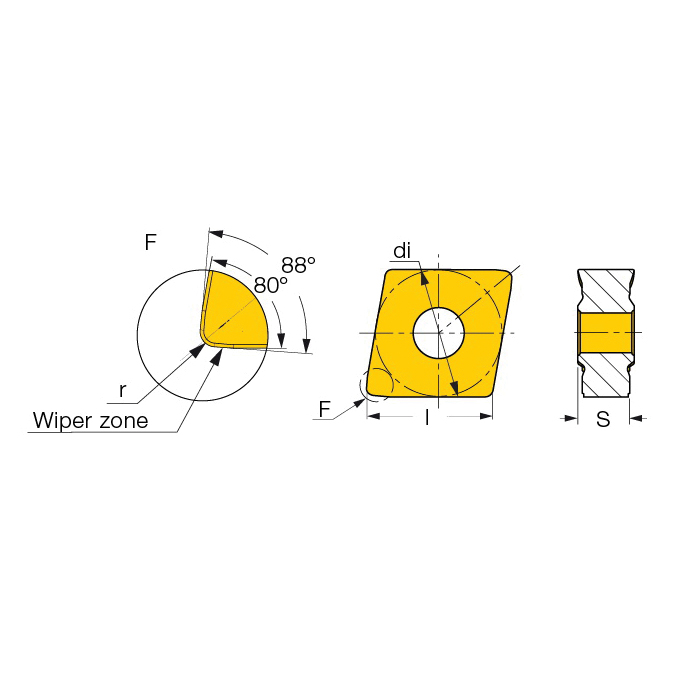

Iscar Turning Insert, Series: HELITURN, CNMX Insert, 553 Insert, Rhombic, 8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.4 mm Thickness, 16 Seat, Positive Rake, HTW Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: CNMX 553-HTW IC8150, ISO Code: CNMX 160712-M4PW IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
  • A wiper corner design produces a high surface finish even at high feed rates
  • Excellent thermal stability and resistance to chipping and plastic deformation
  • Recommended for high speed machining of steel at stable conditions

Specifications

ApplicationHeavy Machining Applications
ANSI CodeCNMX 553-HTW IC8150
ChipbreakerHTW
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle15.88 mm
Insert Size553
Insert StyleCNMX
ISO CodeCNMX 160712-M4PW IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut8 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesHELITURN
ShapeRhombic
Thickness6.4 mm
