Iscar ISCAR 5507873

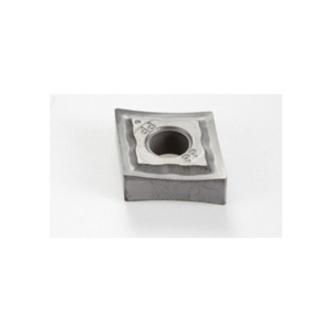

Iscar 5507873 2-Sided Turning Insert, ANSI Code: CNMG 431-PP IC807, CNMG Insert, Material Grade: H, K, M, P, S, 431 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Cnmg 431-pp Ic807
Factory Order
Iscar Turning Insert, 2-Sided, CNMG Insert, 431 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, PP Chipbreaker, 0.4 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: CNMG 431-PP IC807, ISO Code: CNMG 120404-PP IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle and sharp, positive radial edge
- Chipbreaker on both sides with hole
Specifications
ApplicationMachining Applications
ANSI CodeCNMG 431-PP IC807
ChipbreakerPP
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleCNMG
ISO CodeCNMG 120404-PP IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
