Iscar ISCAR 5507872

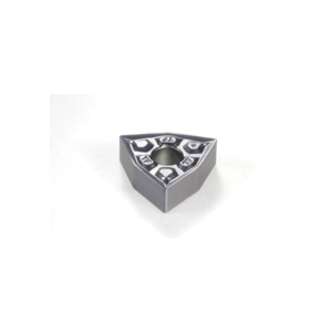

Iscar 5507872 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3-1-TF IC807, WNMG Insert, Material Grade: H, K, M, P, S, 3-1 Insert, Trigon Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Wnmg 3-1-tf Ic807
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-1 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 06 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: WNMG 3-1-TF IC807, ISO Code: WNMG 06T304-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeWNMG 3-1-TF IC807
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.15 in
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleWNMG
ISO CodeWNMG 06T304-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
