Iscar ISCAR 5507866

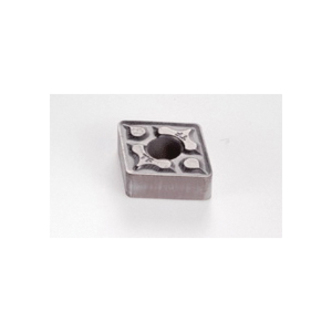

Iscar 5507866 ISOTURN Turning Insert, ANSI Code: CNMG 433-TF, CNMG Insert, 433 Insert, Rhombic Shape, Positive Rake, For Use On Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC807
Invoice description:
Cnmg 433-tf Ic807
Factory Order
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 433 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.047 in Corner Radius, Manufacturers Grade: IC807, ANSI Code: CNMG 433-TF, ISO Code: CNMG/CNGG-TF, 80 deg Included Angle, For Use On: Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided 80 deg rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ApplicationISO Turning and External 100 deg Diamond 75 deg Approach
ANSI CodeCNMG 433-TF
Corner Radius0.047 in
For Use OnCarbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size433
Insert StyleCNMG
ISO CodeCNMG/CNGG-TF
Manufacturers GradeIC807
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Additional Information
Standards/ApprovalISO 13399
