Iscar ISCAR 5507865

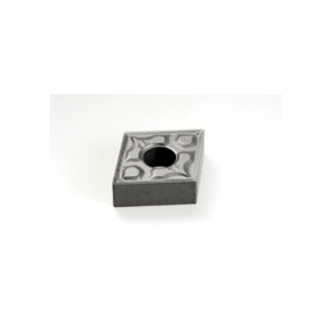

Iscar 5507865 2-Sided Turning Insert, ANSI Code: CNMG 431 TF IC807, CNMG Insert, Material Grade: H, K, M, P, S, 431 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Cnmg 431-tf Ic807
Factory Order

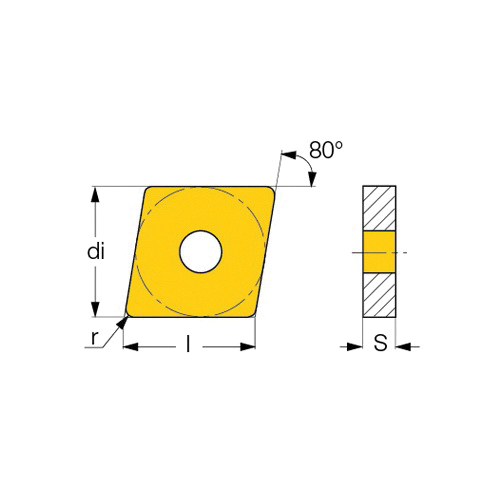

Iscar Turning Insert, 2-Sided, CNMG Insert, 431 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: CNMG 431 TF IC807, ISO Code: CNMG 120404-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeCNMG 431 TF IC807
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleCNMG
ISO CodeCNMG 120404-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
