Iscar ISCAR 5507856

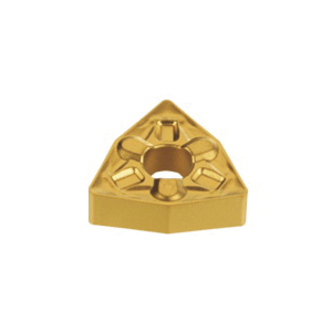

Iscar 5507856 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG643-TNM IC8350, WNMG Insert, Material Grade: M, P, 643 Insert, Trigon Shape, 13 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8350
Invoice description:
Wnmg 643-tnm Ic8350
Factory Order

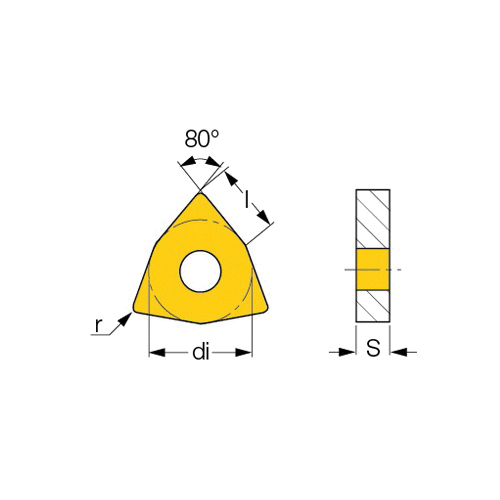

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 643 Insert, Trigon, 7 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 13 Seat, TNM Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC8350, ANSI Code: WNMG643-TNM IC8350, ISO Code: WNMG 130612-TNM IC8350, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- A special seat enables using both insert sides
- Three times more cutting edges compared to an equivalent-sized rhombic insert
- Provides excellent toughness and good wear resistance on steel for interrupted and unstable cutting conditions
Specifications
ApplicationSemi-Roughing and Roughing
ANSI CodeWNMG643-TNM IC8350
ChipbreakerTNM
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleWNMG
ISO CodeWNMG 130612-TNM IC8350
Manufacturers GradeIC8350
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut7 mm
Relief Angle0 deg
Seat Size13
SeriesISOTURN
ShapeTrigon
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
