Iscar ISCAR 5507845

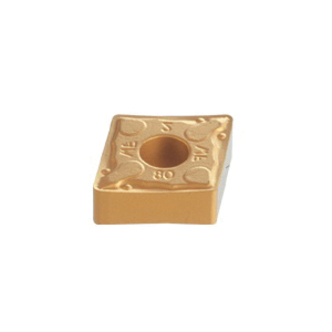

Iscar 5507845 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-WF IC8150, CNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 12 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Cnmg 432-wf Ic8150
Factory Order

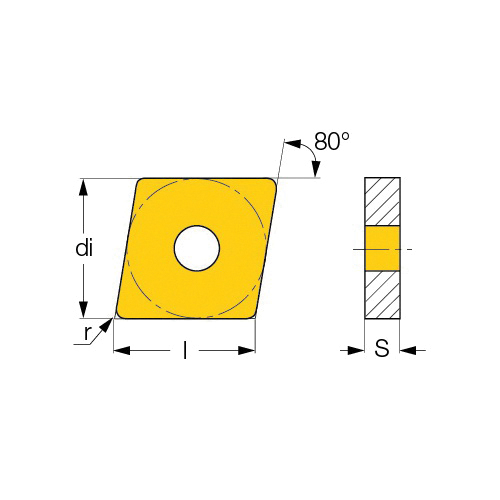

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, WF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: CNMG 432-WF IC8150, ISO Code: CNMG 120408-WF IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- IC8150 grade a hard substrate with a cobalt enriched layer, MTCVD TiCN and alpha Al2O3 CVD coating
- Excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeCNMG 432-WF IC8150
ChipbreakerWF
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-WF IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
