Iscar ISCAR 5507835

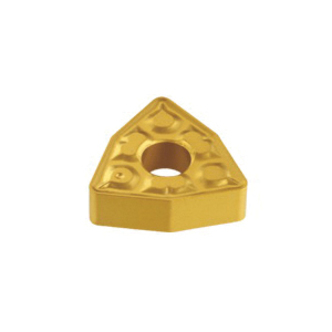

Iscar 5507835 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-TF IC8150, WNMG Insert, Material Grade: K, P, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Wnmg 432-tf Ic8150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC8150, ANSI Code: WNMG 432-TF IC8150, ISO Code: WNMG 080408-TF IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 432-TF IC8150
ChipbreakerTF
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-TF IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
