Iscar ISCAR 5507833

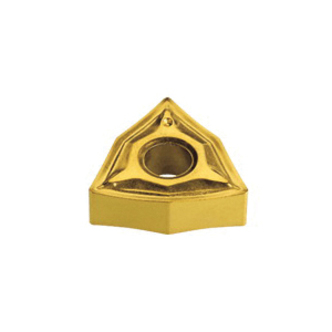

Iscar 5507833 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-NF IC8150, WNMG Insert, Material Grade: K, P, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Wnmg 432-nf Ic8150
Factory Order

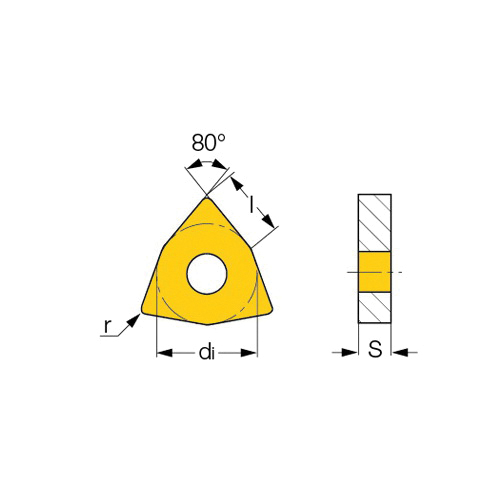

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, NF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: WNMG 432-NF IC8150, ISO Code: WNMG 080408-NF IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 432-NF IC8150
ChipbreakerNF
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-NF IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
