Iscar ISCAR 5507831

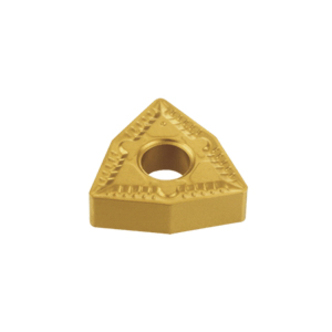

Iscar 5507831 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-GN IC8150, WNMG Insert, Material Grade: K, P, 432 Insert, Trigon Shape, 08 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150

UNSPSC: 23242107
Manufacturer PN: 5507831
$15.02 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC8150, ANSI Code: WNMG 432-GN IC8150, ISO Code: WNMG 080408-GN IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • Secure cutting edge
  • Chipbreaker on both sides, with hole

Specifications

ApplicationMedium and Semi-Roughing
ANSI CodeWNMG 432-GN IC8150
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-GN IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4.5 mm
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
