Iscar ISCAR 5507806

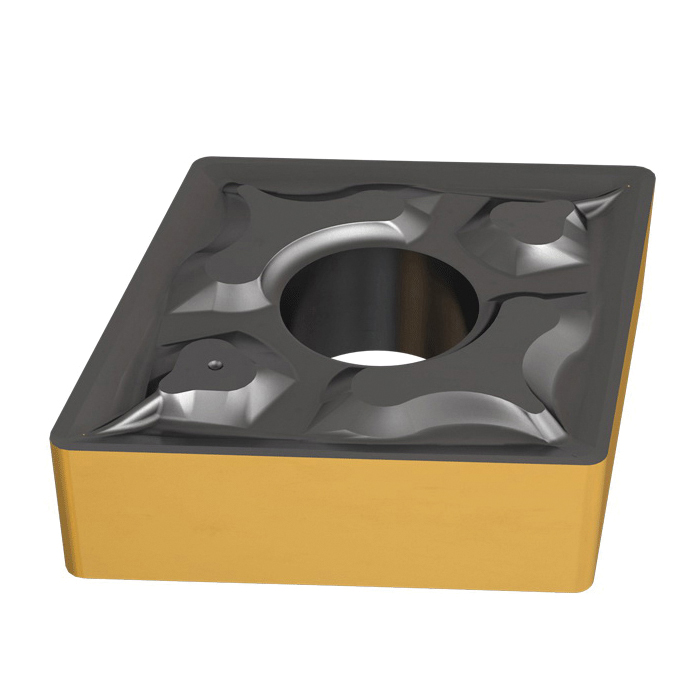

Iscar 5507806 ISOTURN Turning Insert, ANSI Code: CNMG 120404-TF, CNMG Insert, 120404 Insert, Rhombic Shape, Positive Rake, For Use On Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC8250
Invoice description:
Cnmg 431-tf Ic8250
Factory Order
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 120404 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.4 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: CNMG 120404-TF, ISO Code: CNMG/CNGG-TF, 80 deg Included Angle, For Use On: Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided 80 deg rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ApplicationISO Turning
ANSI CodeCNMG 120404-TF
Corner Radius0.4 mm
For Use OnCarbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120404
Insert StyleCNMG
ISO CodeCNMG/CNGG-TF
Manufacturers GradeIC8250
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
