Iscar ISCAR 5507753

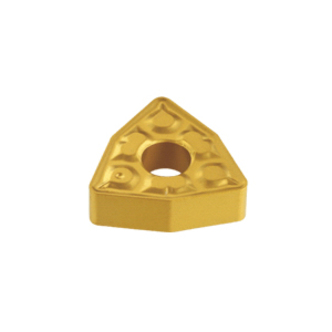

Iscar 5507753 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-TF IC830, WNMG Insert, Material Grade: M, P, S, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC830, ANSI Code: WNMG 432-TF IC830, ISO Code: WNMG 080408-TF IC830, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 432-TF IC830
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-TF IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
