Iscar ISCAR 5507750

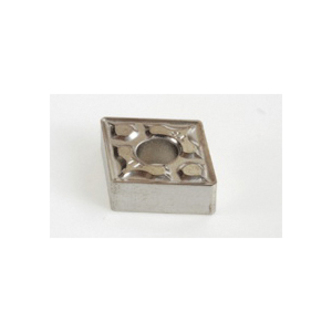

Iscar 5507750 2-Sided Turning Insert, ANSI Code: CNMG 432 TF IC807, CNMG Insert, Material Grade: H, K, M, P, S, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Cnmg 432-tf Ic807
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5507750
$13.08 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, 2-Sided, CNMG Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: CNMG 432 TF IC807, ISO Code: CNMG 120408-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeCNMG 432 TF IC807
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
