Iscar ISCAR 5507738

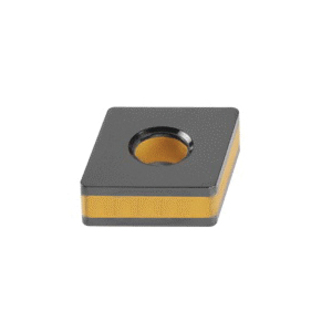

Iscar 5507738 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMA 433 IC5010, CNMA Insert, Material Grade: K, 433 Insert, Rhombic Shape, 12 Seat, For Use On Cast Iron, Carbide, Manufacturers Grade: IC5010
Invoice description:
Cnma 433 Ic5010
Factory Order

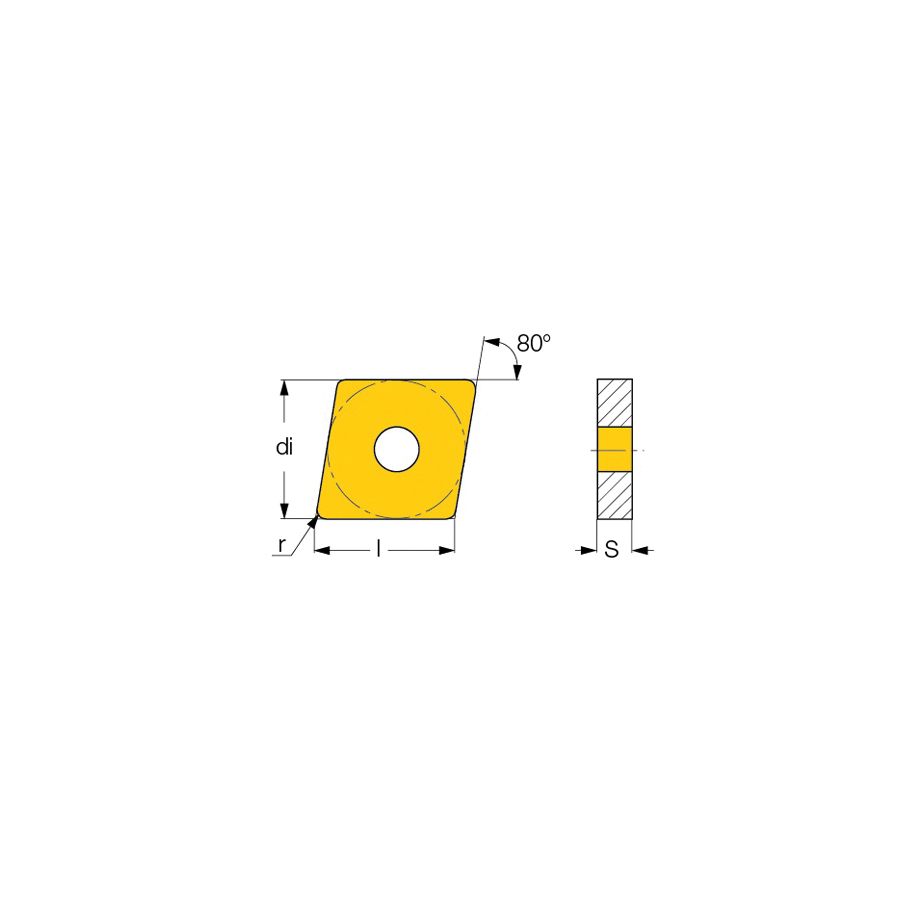

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMA Insert, 433 Insert, Rhombic, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, 1.2 mm Corner Radius, Manufacturers Grade: IC5010, ANSI Code: CNMA 433 IC5010, ISO Code: CNMA 120412 IC5010, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron
Features
- For short chipping materials such as cast iron
- Can be used successfully also on nodular cast iron
- Without chipbreaker with hole
Specifications
ApplicationBoring applications
ANSI CodeCNMA 433 IC5010
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size433
Insert StyleCNMA
ISO CodeCNMA 120412 IC5010
Manufacturers GradeIC5010
MaterialCarbide
Material GradeK
Maximum Depth of Cut4.5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
