Iscar ISCAR 5507722

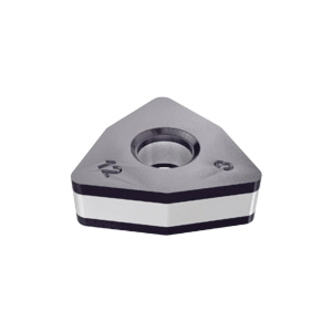

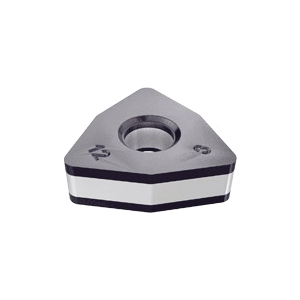

Iscar 5507722 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMA 432 IC5005, WNMA Insert, Material Grade: H, K, P, 432 Insert, Trigon Shape, 08 Seat, For Use On Steel, Cast Iron and Hardened Steel, Carbide, Manufacturers Grade: IC5005
Invoice description:
Wnma 432 Ic5005
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMA Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, 0.8 mm Corner Radius, Manufacturers Grade: IC5005, ANSI Code: WNMA 432 IC5005, ISO Code: WNMA 080408 IC5005, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, For Use On: Steel, Cast Iron and Hardened Steel
Features
- For short chipping materials such as cast iron
- Can also be used successfully on gray cast iron
- Without chipbreaker with hole
Specifications
ANSI CodeWNMA 432 IC5005
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel, Cast Iron and Hardened Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMA
ISO CodeWNMA 080408 IC5005
Manufacturers GradeIC5005
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut4 mm
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
