Iscar ISCAR 5507689

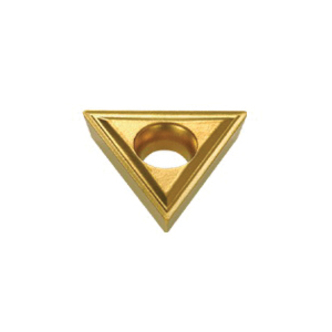

Iscar 5507689 ISOTURN Turning Insert, ANSI Code: TPMT 2-1, TPMT Insert, 2-1 Insert, Triangular Shape, Positive Rake, Manufacturers Grade: IC9250
Invoice description:
Tpmt 2-1 Ic9250
Factory Order
Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 2-1 Insert, Triangular, 6.35 mm Inscribed Circle, 2.38 mm Thickness, Positive Rake, 0.4 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: TPMT 2-1, ISO Code: TPMT, 60 deg Included Angle, 11 deg Relief Angle
Features
- Positive chipformer, low cutting forces
- Used for internal turning and for finishing
Specifications
ApplicationISO Turning
ANSI CodeTPMT 2-1
Corner Radius0.4 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleTPMT
ISO CodeTPMT
Manufacturers GradeIC9250
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Additional Information
Standards/ApprovalISO 13399
