Iscar ISCAR 5507684

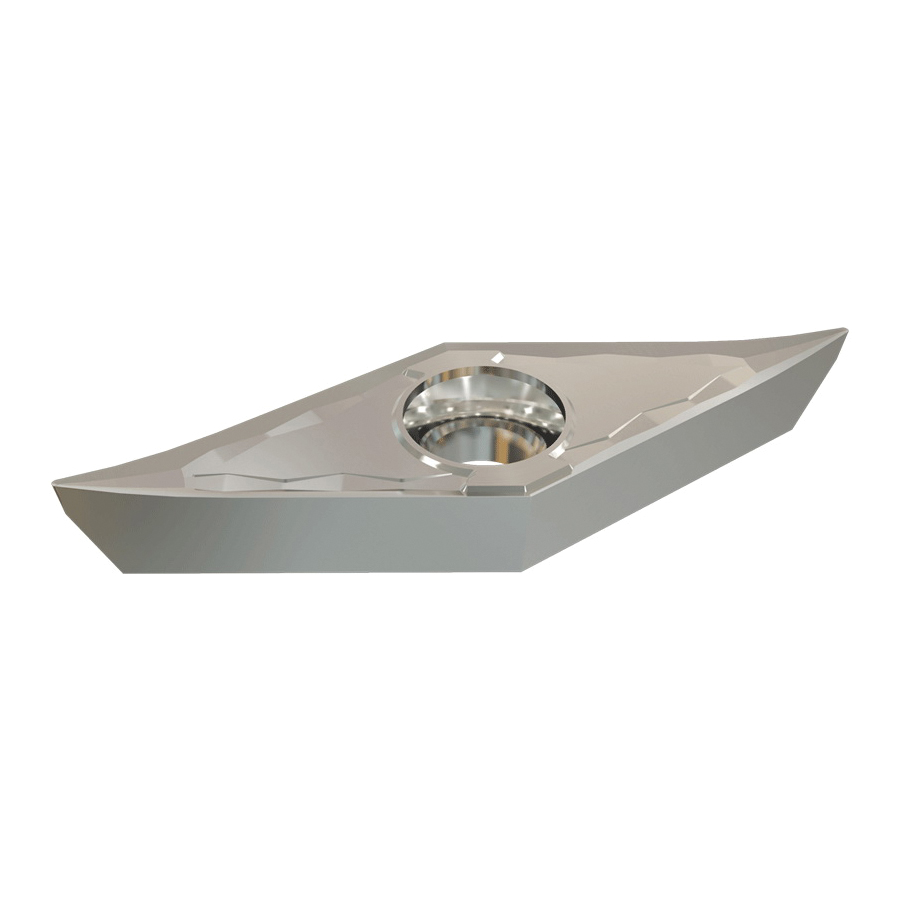

Iscar 5507684 ISOTURN Turning Insert, ANSI Code: VCGT 160401-AS, VCGT Insert, 160401 Insert, Rhombic Shape, Positive Rake, For Use On Aluminum, Manufacturers Grade: IC20
Invoice description:
Vcgt 33-.004-as Ic20
Factory Order
Iscar Turning Insert, Series: ISOTURN, VCGT Insert, 160401 Insert, Rhombic, 9.52 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.1 mm Corner Radius, Manufacturers Grade: IC20, ANSI Code: VCGT 160401-AS, ISO Code: VCGT-AS, 35 deg Included Angle, 7 deg Relief Angle, For Use On: Aluminum
Features
- 35 deg rhombic inserts with a 7 deg positive flank, very positive rake angle and sharp cutting edge for machining aluminum
Specifications
ApplicationHole Making
ANSI CodeVCGT 160401-AS
Corner Radius0.1 mm
For Use OnAluminum
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size160401
Insert StyleVCGT
ISO CodeVCGT-AS
Manufacturers GradeIC20
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
