Iscar ISCAR 5507592

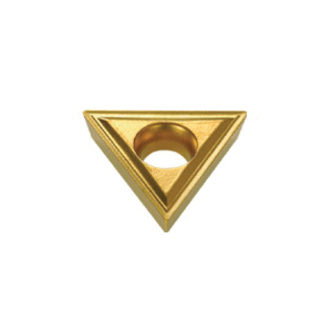

Iscar 5507592 ISOTURN Turning Insert, ANSI Code: TPMT 322 IC9250, TPMT Insert, Material Grade: M, P, 322 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Tpmt 322 Ic9250
Factory Order

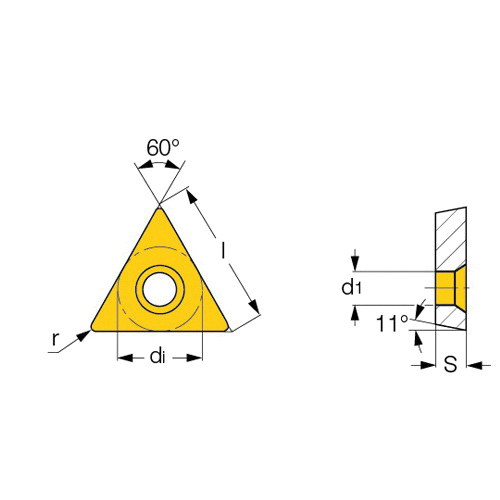

Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 322 Insert, Triangular, 12 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, 0.8 mm Corner Radius, 4.3 mm Hole Dia, Manufacturers Grade: IC9250, ANSI Code: TPMT 322 IC9250, ISO Code: TPMT 160308 IC9250, 60 deg Included Angle, 11 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive chipformer, low cutting forces
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationInternal Turning and Finishing
ANSI CodeTPMT 322 IC9250
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.3 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size322
Insert StyleTPMT
ISO CodeTPMT 160308 IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut12 mm
RakePositive
Relief Angle11 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
Additional Information
Country of OriginIL
