Iscar ISCAR 5507591

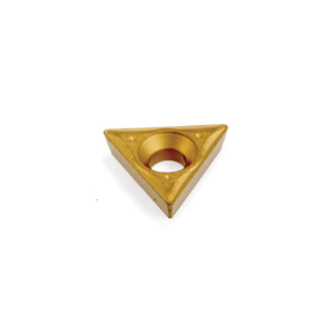

Iscar 5507591 ISOTURN Turning Insert, ANSI Code: TPMT 2-2, TPMT Insert, 2-2 Insert, Triangular Shape, Positive Rake, Manufacturers Grade: IC9250
Invoice description:
Tpmt 2-2 Ic9250
Factory Order
Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 2-2 Insert, Triangular, 6.35 mm Inscribed Circle, 2.38 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: TPMT 2-2, ISO Code: TPMT, 60 deg Included Angle, 11 deg Relief Angle
Features
- Positive chipformer, low cutting forces
- Used for internal turning and for finishing
Specifications
ApplicationISO Turning
ANSI CodeTPMT 2-2
Corner Radius0.8 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-2
Insert StyleTPMT
ISO CodeTPMT
Manufacturers GradeIC9250
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Additional Information
Standards/ApprovalISO 13399
