Iscar ISCAR 5507572

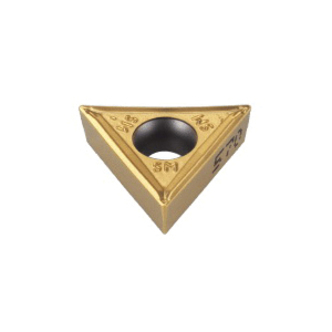

Iscar 5507572 ISOTURN 1-Sided Turning Insert, ANSI Code: TCMT 4-2-SM IC9150, TCMT Insert, Material Grade: K, P, 4-2 Insert, Triangular Shape, 22 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC9150
Invoice description:
Tcmt 4-2-sm Ic9150
Factory Order

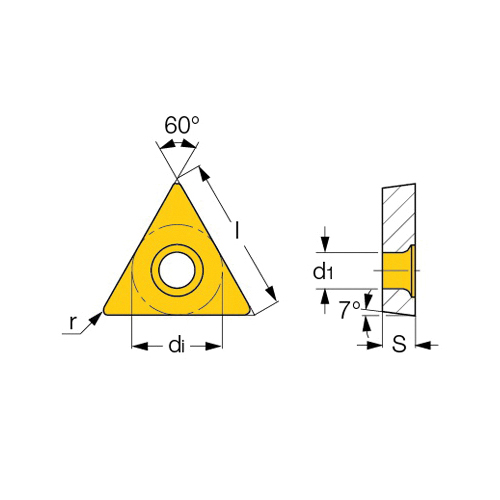

Iscar Turning Insert, 1-Sided, Series: ISOTURN, TCMT Insert, 4-2 Insert, Triangular, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 3.97 mm Thickness, 22 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC9150, ANSI Code: TCMT 4-2-SM IC9150, ISO Code: TCMT 22T308-SM IC9150, 60 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC9150 grade a hard substrate with a cobalt enriched layer, MTCVD TiCN and alpha Al2O3 CVD coating
- Excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeTCMT 4-2-SM IC9150
ChipbreakerSM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter5.5 mm
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size4-2
Insert StyleTCMT
ISO CodeTCMT 22T308-SM IC9150
Manufacturers GradeIC9150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size22
SeriesISOTURN
ShapeTriangular
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
