Iscar ISCAR 5507561

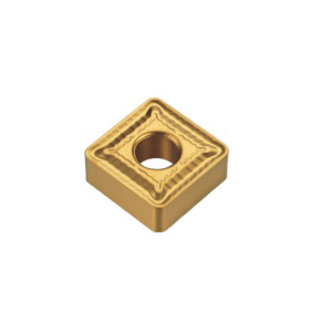

Iscar 5507561 ISOTURN 2-Sided Turning Insert, ANSI Code: SNMG 643-GN IC9250, SNMG Insert, Material Grade: M, P, 643 Insert, Squared Shape, 19 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Snmg 643-gn Ic9250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, SNMG Insert, 643 Insert, Squared, 7 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.05 mm Width, 19.05 mm Length, 19 Seat, GN Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: SNMG 643-GN IC9250, ISO Code: SNMG 190612-GN IC9250, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge, for medium and semi-roughing on steel and cast iron
- Chipbreaker on both sides, with hole
Specifications
ANSI CodeSNMG 643-GN IC9250
ChipbreakerGN
Corner Radius1.2 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle90 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleSNMG
ISO CodeSNMG 190612-GN IC9250
Length19.05 mm
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut7 mm
Relief Angle0 deg
Seat Size19
SeriesISOTURN
ShapeSquared
Thickness6.35 mm
Type2-Sided
Width19.05 mm
