Iscar ISCAR 5507555

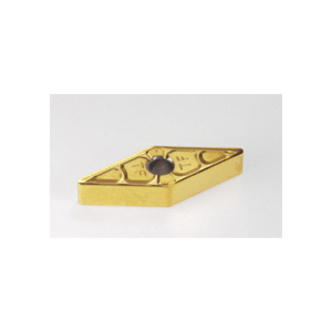

Iscar 5507555 ISOTURN Turning Insert, ANSI Code: VNMG 332-TF, VNMG Insert, 332 Insert, Rhombic Shape, Positive Rake, For Use On Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC9250
Invoice description:
Vnmg 332-tf Ic9250
Factory Order
Iscar Turning Insert, Series: ISOTURN, VNMG Insert, 332 Insert, Rhombic, 3/8 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.031 in Corner Radius, Manufacturers Grade: IC9250, ANSI Code: VNMG 332-TF, ISO Code: VNMG-TF, 35 deg Included Angle, For Use On: Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided, 35 deg rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ApplicationISO Turning and Internal 35 deg Diamond 93 deg Approach
ANSI CodeVNMG 332-TF
Corner Radius0.031 in
For Use OnCarbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size332
Insert StyleVNMG
ISO CodeVNMG-TF
Manufacturers GradeIC9250
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Additional Information
Standards/ApprovalISO 13399
