Iscar ISCAR 5507504

Iscar 5507504 HELITURN Turning Insert, ANSI Code: DNMX 442 HT IC8150, DNMX Insert, Material Grade: K, P, 442 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150

UNSPSC: 23242107
Manufacturer PN: 5507504
$21.40 EA
Factory Order
Estimated to ship in 14 days
QTY:

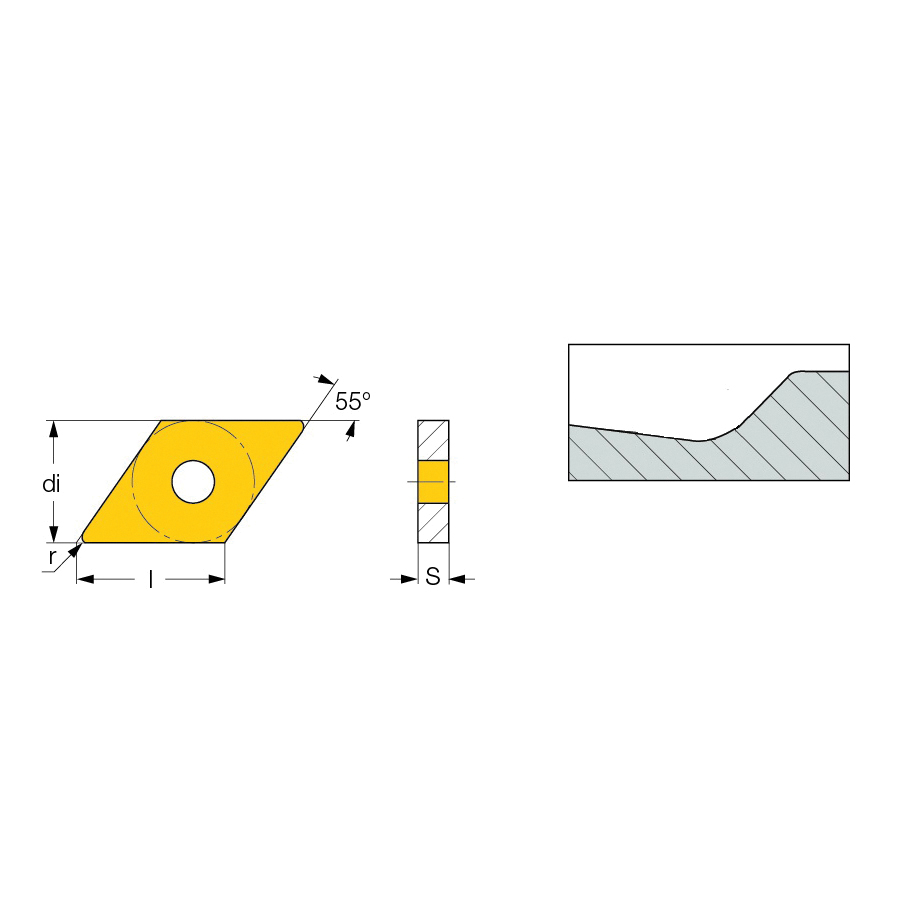

Iscar Turning Insert, Series: HELITURN, DNMX Insert, 442 Insert, Rhombic, 7 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15 Seat, Positive Rake, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: DNMX 442 HT IC8150, ISO Code: DNMX 150608-M3P IC8150, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
  • A wiper corner design produces a high surface finish even at high feed rates
  • Excellent thermal stability and resistance to chipping and plastic deformation
  • Recommended for high speed machining of steel at stable conditions

Specifications

ApplicationMachining Applications
ANSI CodeDNMX 442 HT IC8150
ChipbreakerHT
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size442
Insert StyleDNMX
ISO CodeDNMX 150608-M3P IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut7 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesHELITURN
ShapeRhombic
Thickness6.35 mm
