Iscar ISCAR 5507359

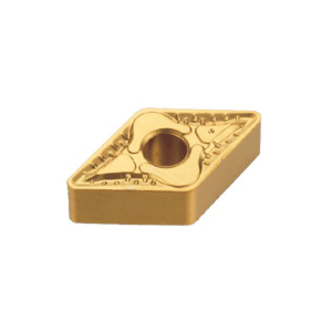

Iscar 5507359 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432-GN IC9250, DNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 15 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Dnmg 432-gn Ic9250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, GN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: DNMG 432-GN IC9250, ISO Code: DNMG 150408-GN IC9250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge
- Chipbreaker on both sides, with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeDNMG 432-GN IC9250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-GN IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
