Iscar ISCAR 5507358

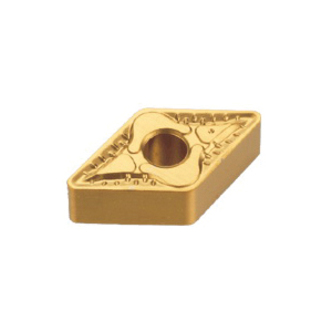

Iscar 5507358 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432-GN IC9150, DNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 15 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC9150
Invoice description:
Dnmg 432-gn Ic9150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, GN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC9150, ANSI Code: DNMG 432-GN IC9150, ISO Code: DNMG 150408-GN IC9150, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Secure cutting edge
- Chipbreaker on both sides, with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeDNMG 432-GN IC9150
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-GN IC9150
Manufacturers GradeIC9150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4 mm
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
