Iscar ISCAR 5507354

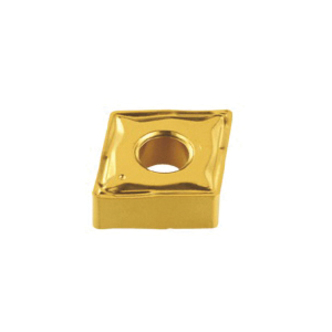

Iscar 5507354 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432 NF IC9250, CNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250

UNSPSC: 23242107
Manufacturer PN: 5507354
$12.64 EA
Factory Order
Estimated to ship in 14 days
QTY:

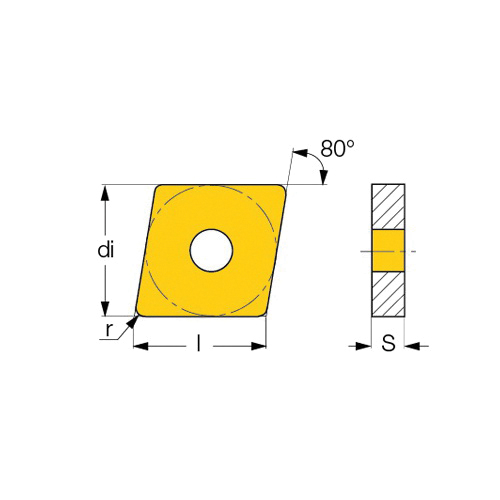

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, NF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: CNMG 432 NF IC9250, ISO Code: CNMG 120408-NF IC9250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

  • Features

  • Low cutting forces due to very sharp edge and positive rake
  • IC9250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
  • Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance

Specifications

ApplicationSemi-Finishing and Finishing
ANSI CodeCNMG 432 NF IC9250
ChipbreakerNF
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-NF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
