Iscar ISCAR 5507351

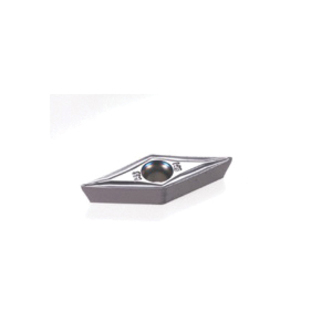

Iscar 5507351 ISOTURN Turning Insert, ANSI Code: VCMT 220-SM IC907, VCMT Insert, Material Grade: H, K, M, N, P, S, 220 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Vcmt 220-sm Ic907
Factory Order
Iscar Turning Insert, Series: ISOTURN, VCMT Insert, 220 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: VCMT 220-SM IC907, ISO Code: VCMT 110302-SM IC907, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
- IC907 grade developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Suitable for low-to-medium cutting speeds
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVCMT 220-SM IC907
ChipbreakerSM
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size220
Insert StyleVCMT
ISO CodeVCMT 110302-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
