Iscar ISCAR 5507342

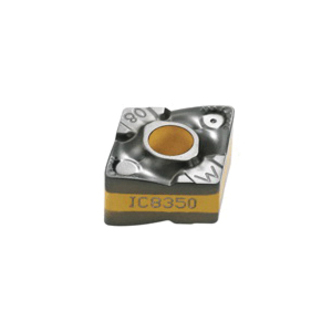

Iscar 5507342 HELITURN LD Turning Insert, ANSI Code: CNMX 453-HTW IC9250, CNMX Insert, Material Grade: M, P, 453 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250

UNSPSC: 23242107
Manufacturer PN: 5507342
$14.72 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: HELITURN LD, CNMX Insert, 453 Insert, Rhombic, 6 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.78 mm Thickness, 12 Seat, Positive Rake, M4PW Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: CNMX 453-HTW IC9250, ISO Code: CNMX 120712-M4PW IC9250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

  • Features

  • The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces

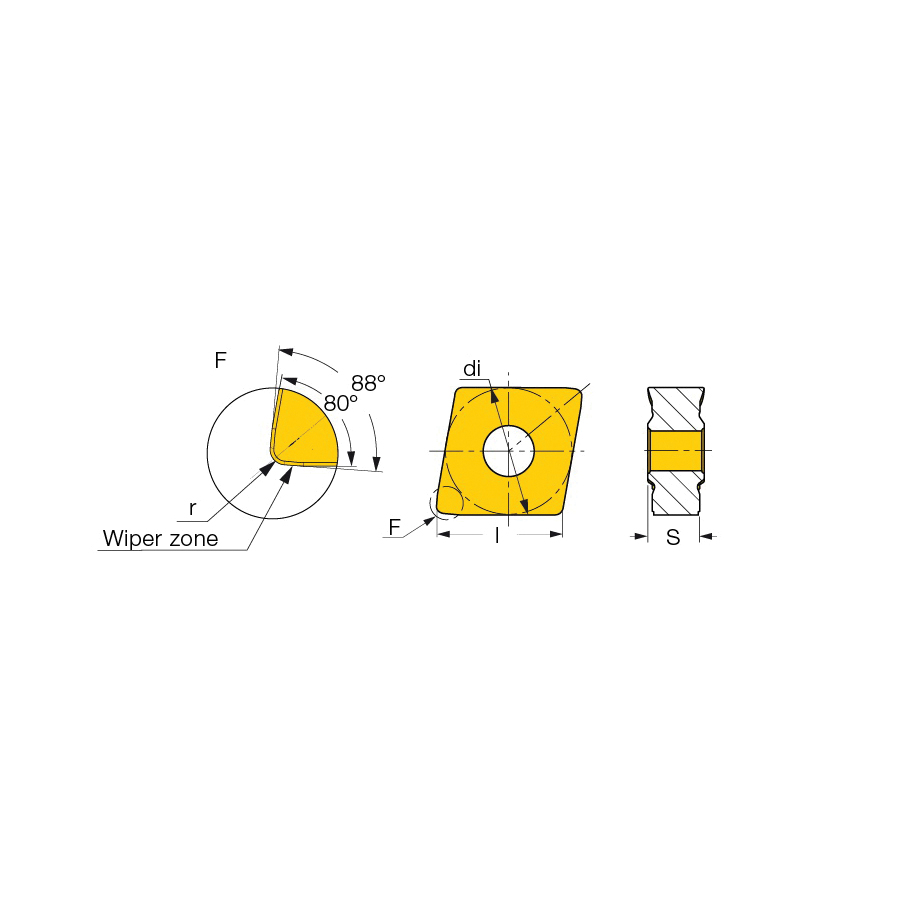

  • A wiper corner design produces a high surface finish even at high feed rates
  • Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance

Specifications

ApplicationHeavy Machining Applications
ANSI CodeCNMX 453-HTW IC9250
ChipbreakerM4PW
Corner Radius1.2 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size453
Insert StyleCNMX
ISO CodeCNMX 120712-M4PW IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut6 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesHELITURN LD
ShapeRhombic
Thickness6.78 mm
