Iscar ISCAR 5507315

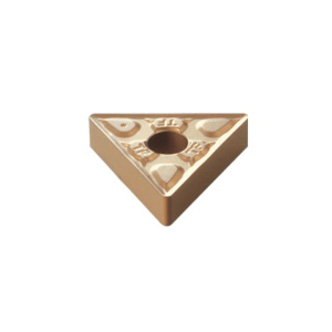

Iscar 5507315 2-Sided Turning Insert, ANSI Code: TNMG 432-TF IC9250, TNMG Insert, Material Grade: M, P, 432 Insert, Triangular Shape, 22 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Tnmg 432-tf Ic9250
Factory Order

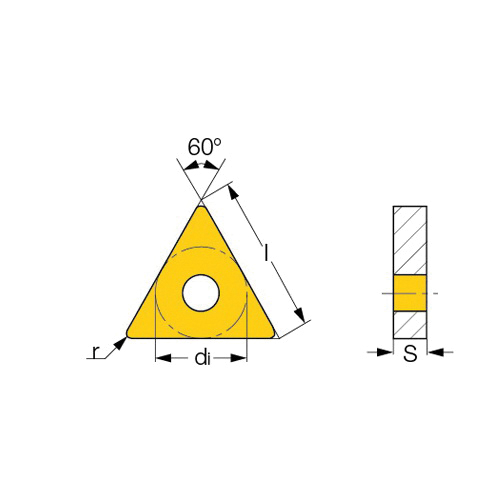

Iscar Turning Insert, 2-Sided, TNMG Insert, 432 Insert, Triangular, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC9250, ANSI Code: TNMG 432-TF IC9250, ISO Code: TNMG 220408-TF IC9250, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeTNMG 432-TF IC9250
ChipbreakerTF
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.203 in
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleTNMG
ISO CodeTNMG 220408-TF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size22
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
