Iscar ISCAR 5507313

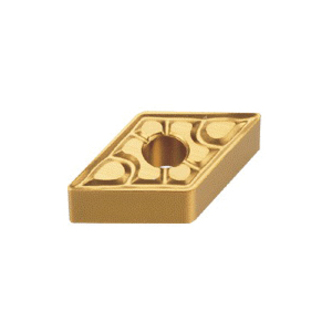

Iscar 5507313 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 431-TF IC9250, DNMG Insert, Material Grade: M, P, 431 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 431 Insert, Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: IC9250, ANSI Code: DNMG 431-TF IC9250, ISO Code: DNMG 150404-TF IC9250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeDNMG 431-TF IC9250
ChipbreakerTF
Corner Radius0.4 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter5.15 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleDNMG
ISO CodeDNMG 150404-TF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
