Iscar ISCAR 5507246

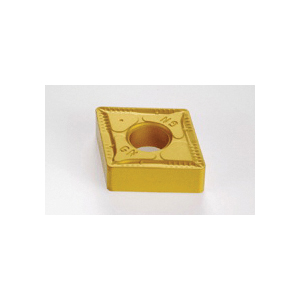

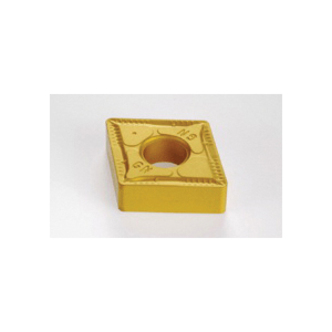

Iscar 5507246 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 643-GN IC9350, CNMG Insert, Material Grade: M, P, 643 Insert, Rhombic Shape, 19 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9350
Invoice description:
Cnmg 643-gn Ic9350
Factory Order

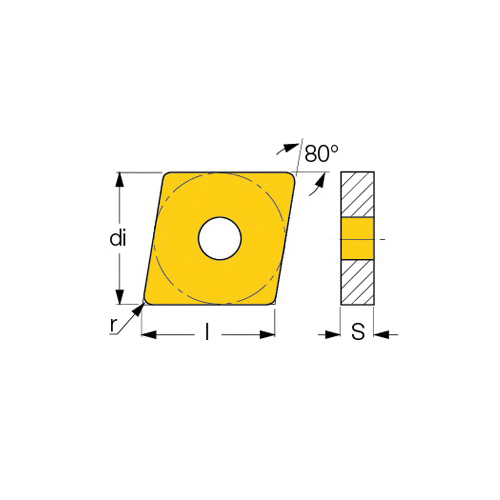

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 643 Insert, Rhombic, 7.98 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, GN Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC9350, ANSI Code: CNMG 643-GN IC9350, ISO Code: CNMG 190612-GN IC9350, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge
- IC9350 grade a very tough substrate with a cobalt enriched layer combined with a MTCVD TiCN and alpha Al2O3 CVD coating
- Provides excellent toughness and good wear resistance on steel for interrupted and unstable cutting conditions
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeCNMG 643-GN IC9350
ChipbreakerGN
Corner Radius1.2 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleCNMG
ISO CodeCNMG 190612-GN IC9350
Manufacturers GradeIC9350
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut7.98 mm
Relief Angle0 deg
Seat Size19
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
