Iscar ISCAR 5507224

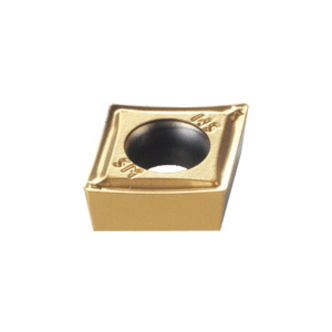

Iscar 5507224 ISOTURN Turning Insert, ANSI Code: CCMT 432-SM, CCMT Insert, 432 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC9150
Invoice description:
Ccmt 432-sm Ic9150
Factory Order
Iscar Turning Insert, Series: ISOTURN, CCMT Insert, 432 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC9150, ANSI Code: CCMT 432-SM, ISO Code: CCMT/CCGT-SM, 80 deg Included Angle, 7 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys
Features
- Single sided turning inserts for semi-finishing and finishing
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
Specifications
ApplicationISO Turning
ANSI CodeCCMT 432-SM
Corner Radius0.8 mm
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCCMT
ISO CodeCCMT/CCGT-SM
Manufacturers GradeIC9150
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
