Iscar ISCAR 5507026
Iscar 5507026 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMX 452-HTW IC907, CNMX Insert, Material Grade: H, K, M, N, P, S, 452 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmx 452-m4pw Ic907 I7026 Turning Insert
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMX Insert, 452 Insert, Rhombic, 6 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.78 mm Thickness, 12 Seat, Positive Rake, HTW Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: CNMX 452-HTW IC907, ISO Code: CNMX 120708-M4PW IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces

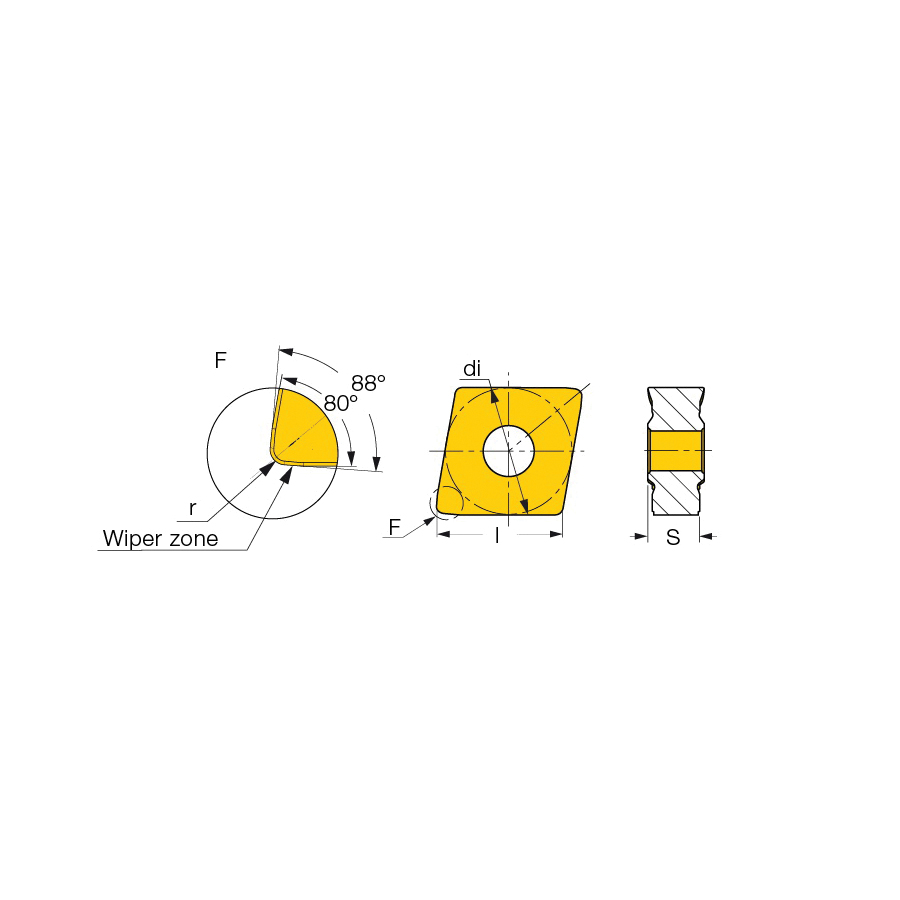

- A wiper corner design produces a high surface finish even at high feed rates
Specifications
ApplicationBoring and Heavy Machining
ANSI CodeCNMX 452-HTW IC907
ChipbreakerHTW
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.1562 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size452
Insert StyleCNMX
ISO CodeCNMX 120708-M4PW IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut6 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness6.78 mm
Type2-Sided
Additional Information
Standards/ApprovalDIN4000-76
Country of OriginIL
