Iscar ISCAR 5507021

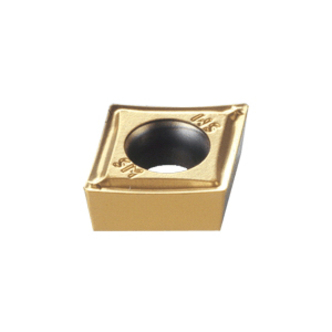

Iscar 5507021 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 432-SM IC9250, CCMT Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Ccmt 432-sm Ic9250
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC9250, ANSI Code: CCMT 432-SM IC9250, ISO Code: CCMT 120408-SM IC9250, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 432-SM IC9250
ChipbreakerSM
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter5.5 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCCMT
ISO CodeCCMT 120408-SM IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
