Iscar ISCAR 5507014

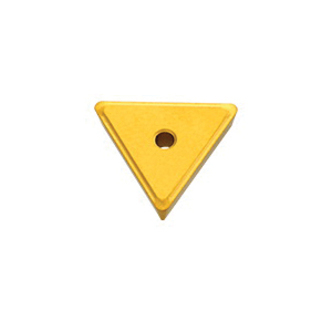

Iscar 5507014 ISOTURN Turning Insert, ANSI Code: TPMR 322-PF IC9250, TPMR Insert, Material Grade: M, P, 322 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Tpmr 322-pf Ic9250
Factory Order

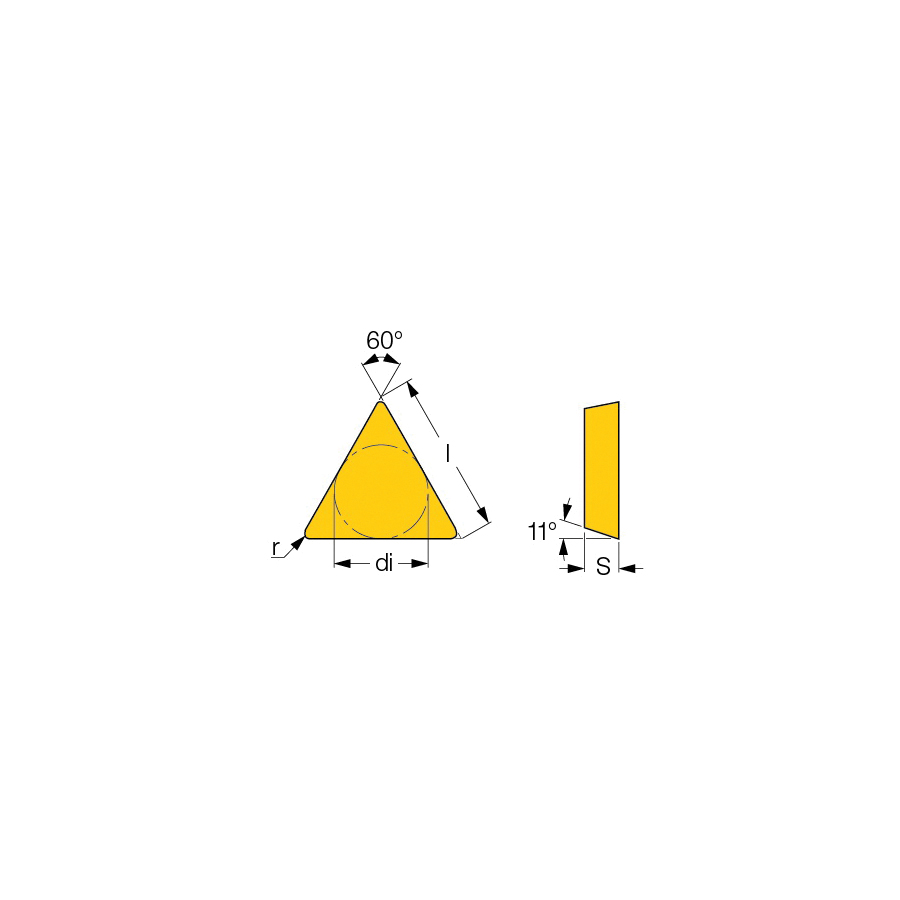

Iscar Turning Insert, Series: ISOTURN, TPMR Insert, 322 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, PF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: TPMR 322-PF IC9250, ISO Code: TPMR 160308-PF IC9250, 60 deg Included Angle, 11 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank insert with a positive chipformer
- Low cutting forces, especially suitable for internal turning
- IC9250 grade recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
- Chipbreaker on one side without hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeTPMR 322-PF IC9250
ChipbreakerPF
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size322
Insert StyleTPMR
ISO CodeTPMR 160308-PF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle11 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
